Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

Brand Name : YN

Model Number : YN-LC-2400

Certification : CE/ISO

Place of Origin : China

MOQ : 1PCS

Price : reconsideration

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Delivery Time : 7-15 work days

Packaging Details : First in carton,then made wooden tray or as your requirement

Product Name : Laminar air flow hood

Purification levels : Class 100

Average velocity; : 0.25-0.45m/s(Adjustable)

Noise : ≤62dB

Power supply : 120/220V/50Hz

Usage : Use alone or in combination

Packaging : Wooden case

Contact Now

Product Description


H14 Ceiling Suspended Air Purification Equipment CE Certification Clean Room Hepa Filter For Laminar Air Flow Hood
Applicable Industries
Electronics, pharmaceutical products, medical device equipment, aerospace,defense,agriculture,automotive,battery dry rooms,biotech cell,gene therapy, chemical,environmental testing, food manufacturing,forensic science,hospital, manufacturing,medical research,microbiology,microprocessor,plastic industry,plastic injection molding, quality control,semiconductor,server room, storage,university research, water treatment,weapons manufacture. hotels, garment shops, building material shops, manufacturing plant, machinery repair shops, food & beverage factory, farms, restaurant, home use, retail, food shop, printing shops, construction works , energy & mining, food & beverage shops, other, advertising company.


Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

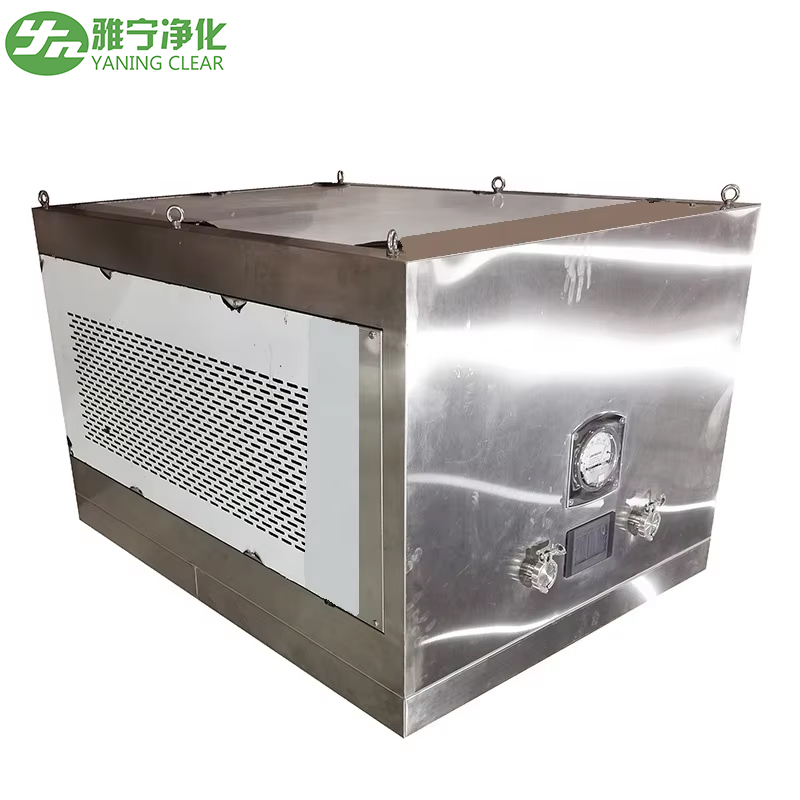

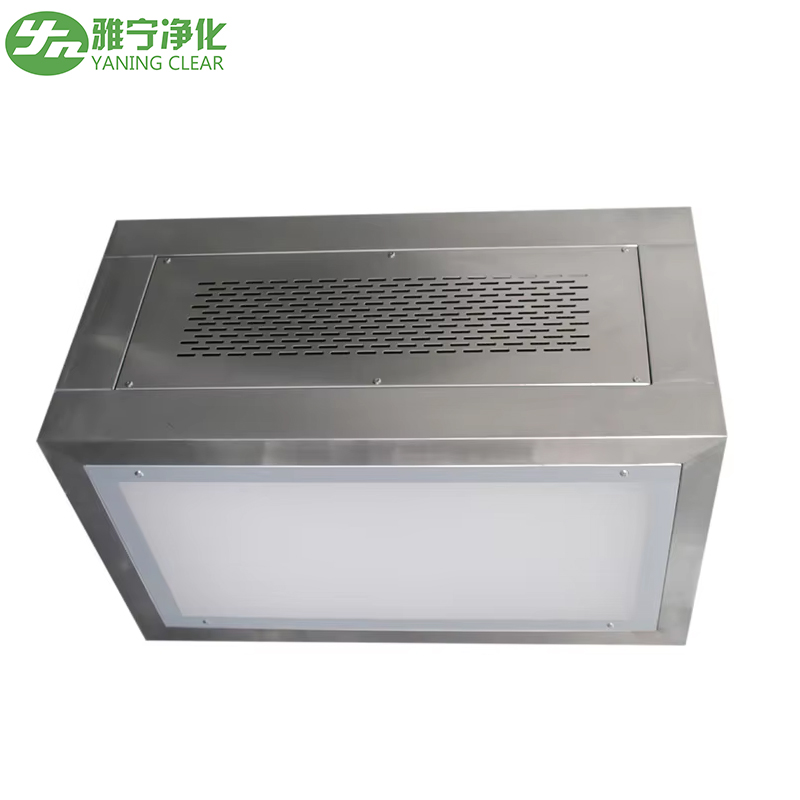

Laminar Air Flow Hood

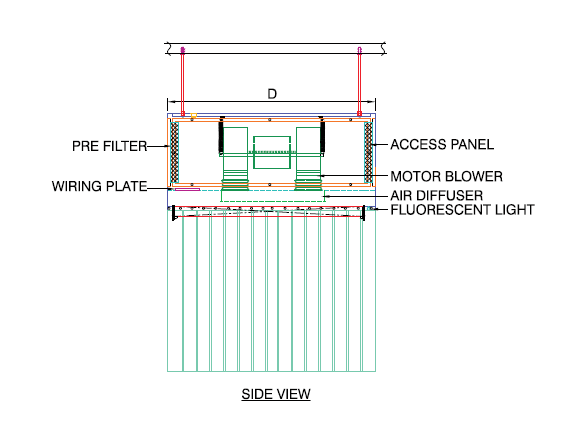

The laminar air flow hood is a kind of air purification equipment that can provide a local high clean environment.the product can be suspended or supported on the ground, with a compact structure and convenient use,it can be used alone or connected to form a strip-shaped clean area.


The Laminar Air Flow Hood

1.Model
YN-LAFH-01
YN-LAFH-02
YN-LAFH-03
YN-LAFH-04
2.Cleaness Level
ISO 5 (Class 100)
3.External Dimension (W*L*H mm)
500*500*400
600*600*400
800*800*400
1000*1000*400
4.Hepa Filter Size (W*L*H mm )
450*450*90
550*550*90
750*750*90
850*850*90
5.Air Volume
500m3/h
800m3/h
1000m3/h
1500m3/h
6.Air Velocity ( m/s)

0.45±10%
7.Sterilization Lamp
8W*2pcs
8W*2pcs
8W*3pcs
8W*4 pcs
8.Differential Pressure Gauge
0~500 Pa
9.Air Duct
D150*L100 mm
10.Noise Level( dB)
distance 1 m from equipment <55dB
11.Control Mode
LCD Screen Control
12.Case Material
Powder Coated Steel,Polish SUS 201/304/316,Mirror SUS201/304/316
13.Power Supply (V/Hz)
AC 380V/220V/110V 50Hz/60Hz
14.Hepa Filter Efficiency ( > )
99.99%


Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

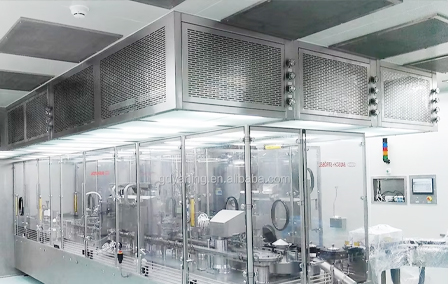

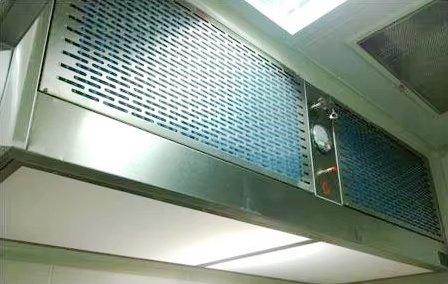

Success case show


Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

Our Factory


Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity
Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than 30,000 square meters, and an annual output value of more than 300 million RMB.

Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity
Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and
has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong


Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

Packing&Delivery


Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

Packaging
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
shipping
Samples be shipped by DHL/FedExUSP and so on Mass production be shippinh by Air or Sea

Exhibition


Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

Class 100 Laminar Air Flow Hood Adjustable 0.25-0.45m/S Average Velocity

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.

4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
